Premium dimensional heat transfer option made with dyed nylon fibers in combination with a textile insert – capable of reproducing brilliant colors and exquisite detail in a durable but soft-textured emblem
LexTra 3D/4D
LexTra’s 3D/4D mixed media variants really provide the dimensional pop and depth to stand out when you need something a step above the rest. With a combination of matte finish from the nylon fiber elements and a richly colored fabric backing, these options really draw eyeballs with their visual variation and shine.
There are 3 different versions of LexTra® dimensional graphics:
- LexTra | Dimensional graphics which reproduce fine design details with a soft all-flock texture that is plush and flexible while providing a matte finish.

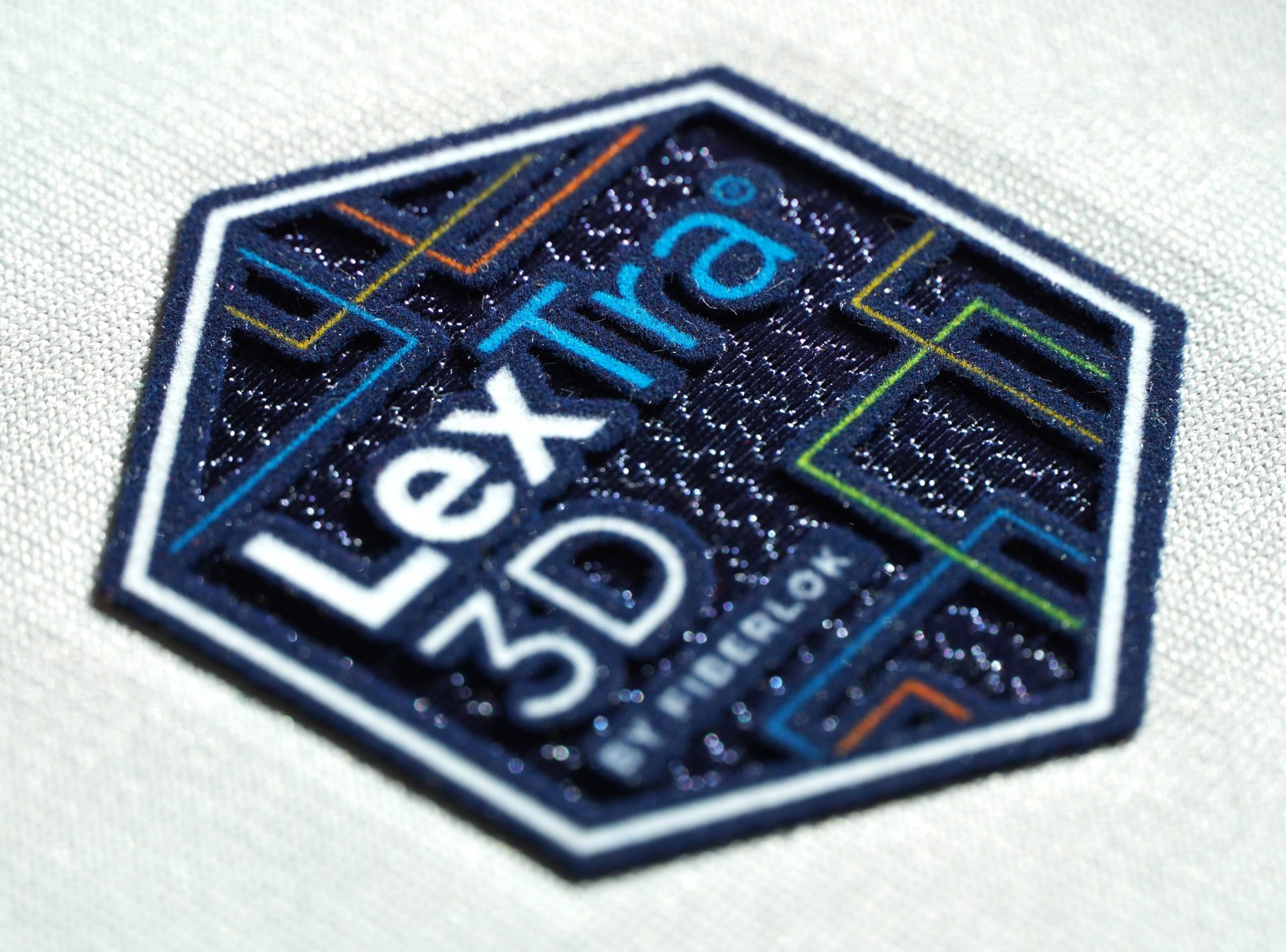

- LexTra 3D | A mixed-media variant which combines flock elements with a single-color, high-luster textile in “windows” for contrast and greater dimensional impact
- LexTra 4D | Takes mixed-media graphics a step further by combining flock elements with a multi-color textile insert, offering a full range of color when you need it as well as fine detail.
And you can now specify EcoTwill (FiberLok’s 100% recycled polyester fabric option) as insert material for Lextra 3D/4D if you are looking for an Earth-friendly decoration option.
LexTra | Dimensional graphics which reproduce fine design details with a soft all-flock texture that is plush and flexible while providing a matte finish.
LexTra 3D | A mixed-media variant which combines flock elements with a single-color, high-luster textile in “windows” for contrast and greater dimensional impact
LexTra 4D | Mixed-media graphic combining flock elements with a multi-color textile insert, offering a full range of color when you need it as well as fine detail.
LexTra 3D/4D Specifications
Color
- Flock | Up to 6 flock colors – Pantone matched or stock
- Textile | Unlimited colors – Pantone matched
LexTra® 3D/4D Insert Material
ObiTex
Satin
Metalweave
Silver
Backing
- Heat Transfer – applied with a heat press
- Patch – sew-on (fabric backing)
- PSA (Sticker) – peel and stick
- Velcro – hook or loop side
Additional Options
- LexTraMax – Film–based product for adhesion to diffcult
substrates
Order Minimums
- Quantity: 250+ (stock colors), 500+ (non-stock)
- For designs greater than 20 square inches, minimums may be less
Size Specifications Min/Max
- Minimum image size: 1/2″ x 1/2″ (12.7 mm x 12.7 mm)
- Maximum image size: 16″ x 14″ (406 mm x 356 mm)
- Minimum freestanding line weight: 1.0 mm
- Minimum between freestanding elements: 0.8 mm
Production Time
- Two (2) days art time
- Order ships two (2) weeks after art approval, or sooner
Fabrics
Adheres to the following fabrics:
- Canvas
- Cotton
- Denim
- Dri-Fit
- Fleece
- Mesh
- Polyester
- Rayon
- Spandex
- Textured Knits
Custom fabric testing available
Testing Information
- 100 home wash cycles with tumble dry at 40° C (104°F)
- OEKO-TEX® STANDARD 100 Class 1 – 18.HUS.54182 Hohenstein HTTI http://www.oeko-tex.com
- A01 and RSL compliant
- Abrasion resistance per ASTM D3885: 25,000+ cycles
- 25 dry clean cycles
Shelf Life
- Three (3) years in a controlled environment
LexTra 3D/4D Resources
Specifications Sheet for LexTra 3D/4D
From the details of the transfer construction to minimum order quantities and fabric/backing options, this sheet provides you with the product information you need to make the most informed decisions.
Compliance Certificate for LexTra
Health and ecological standards are very important to FiberLok. Whenever possible, we try to source materials and exercise practices that warrant certifications to reflect that.
Application Instructions for
LexTra 3D/4D
Incorrectly applying transfers to products is the No. 1 cause for failure or dissatisfaction among customers. It’s vital that instructions like these are followed for the greatest success in appearance as well as adhesion.
3D/4D Appliqué Instructions
Appliqué transfers require slightly difference settings for the most accurate and successful application. Here is the information you need regarding timing, pressure, and materials.
Stock Color Cards for LexTra
When possible, using stock colors often helps expedite turnaround times and saves on custom matching costs, with many customers finding the differences negligible from their desired hues.
>> In addition, see LexTra 3D Insert Stock Colors
LexTra® Product Video (incl. 3D & 4D)
Explore LexTra, our flagship flocked graphic solution (including 3D & 4D inserts) by FiberLok, in this brief video overview of the product’s features, benefits, and common uses.
LexTra 3D/4D Gallery
